- Measure drawing Practicum 1
PROJECT 1
sketchbook & journal
In the 1st project, we are briefed to make a sketchbook journal on the observation on the site, the Jabatan Agama Islam Daerah Klang. The requirement of the project is to produce sketch with the Genius Loci, Poetic Quality, Culture Attributes and Technical/construction details.
What we learned in this project is the observation skill, we also learn the culture of the architecture. we need to have a good decision making to choose which part to draw, lastly, this developed our creativity on the sketching skill.
Project 2
measured drawing

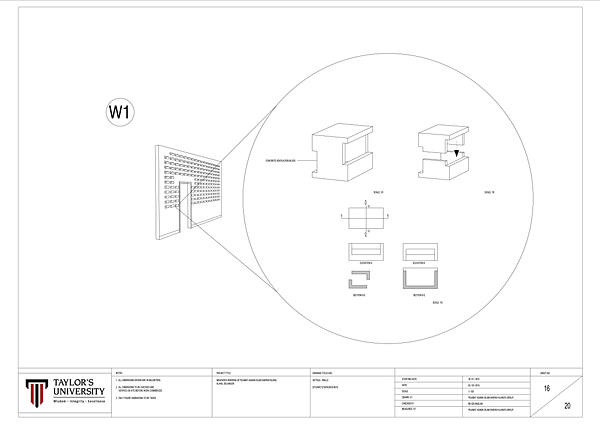

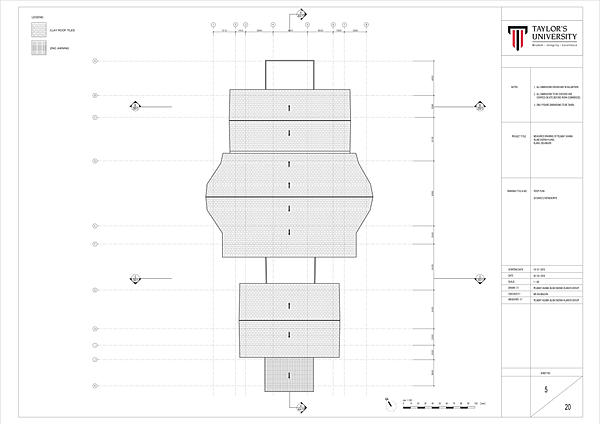

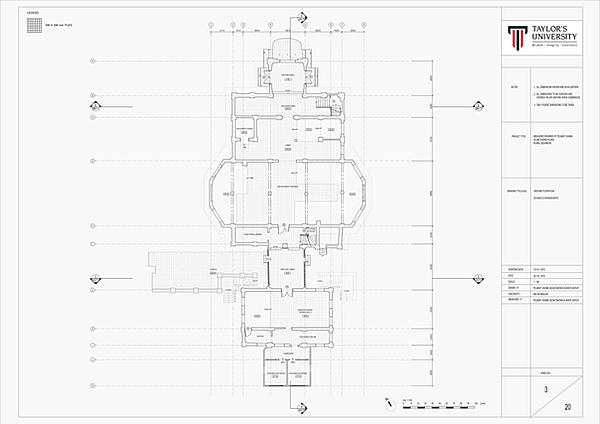

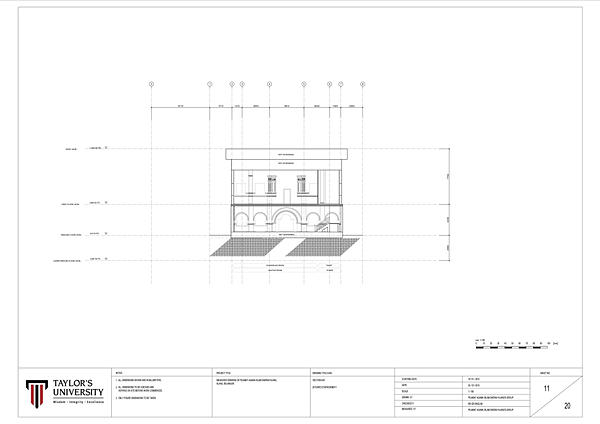

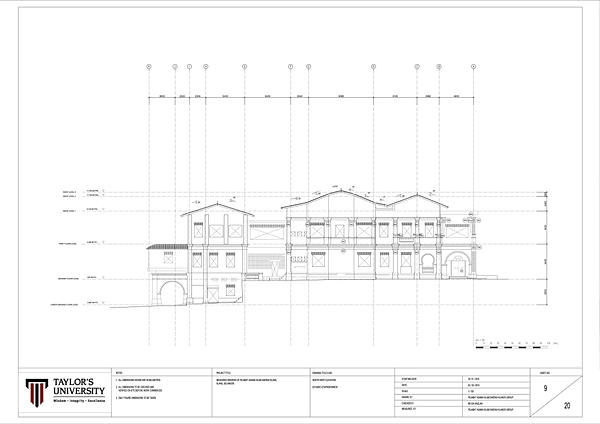

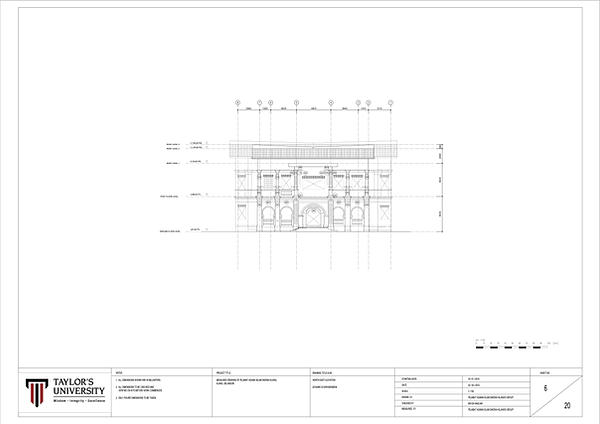

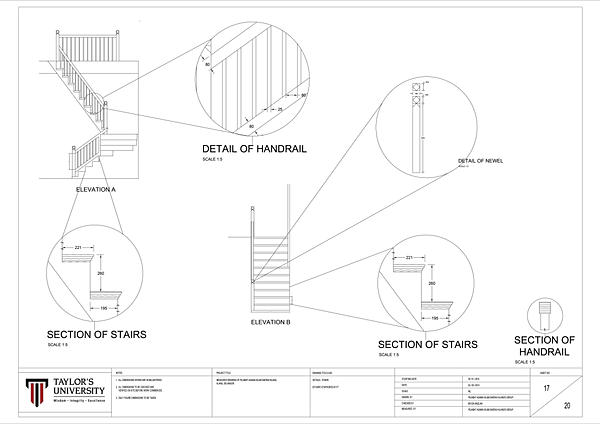

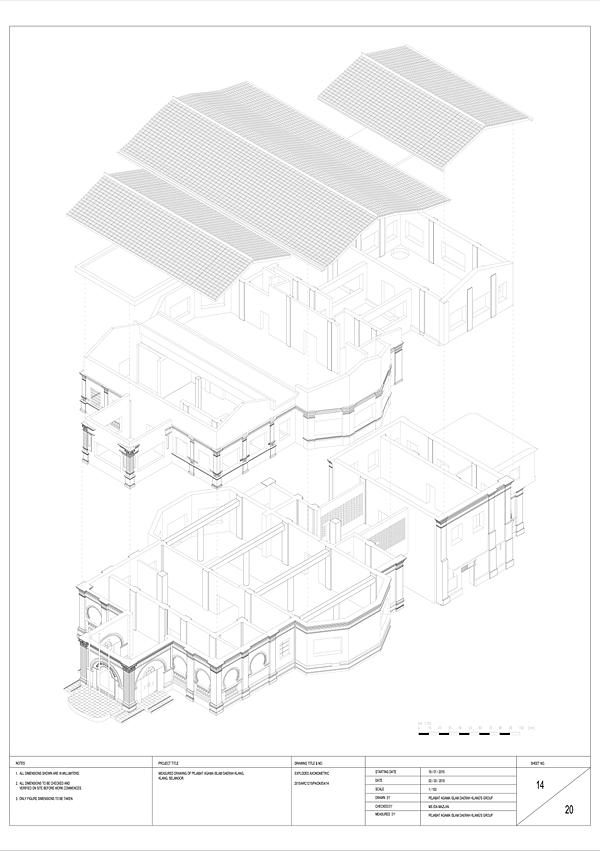

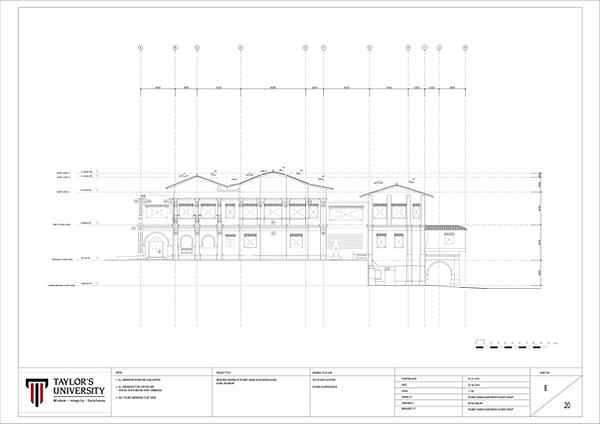

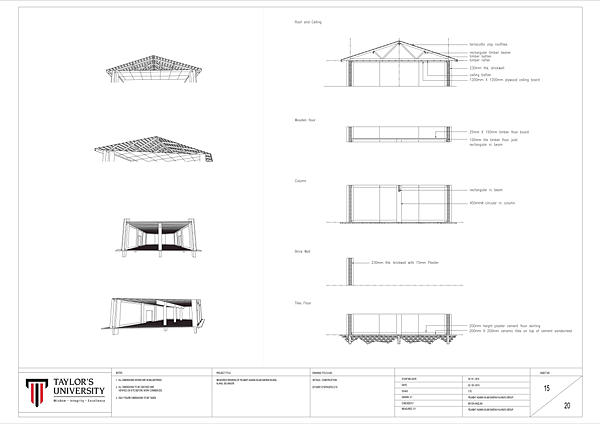

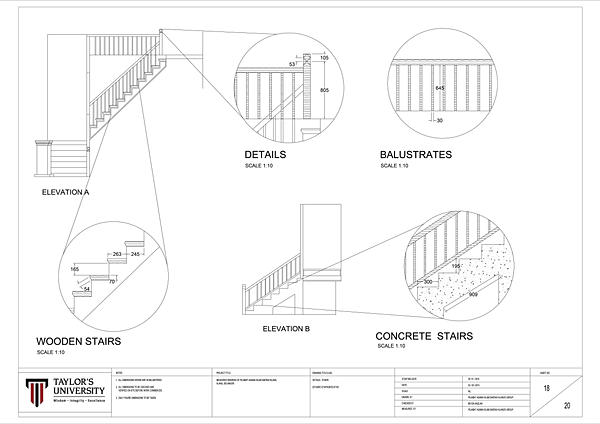

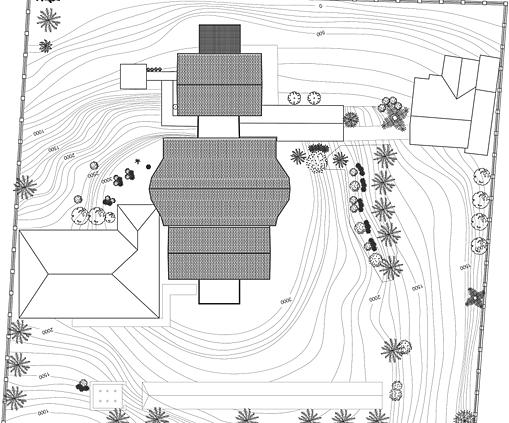

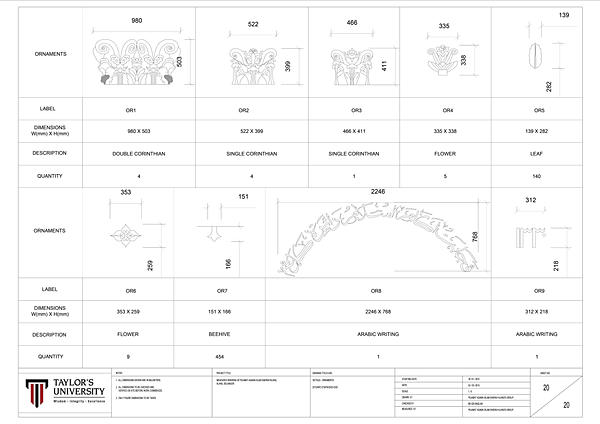

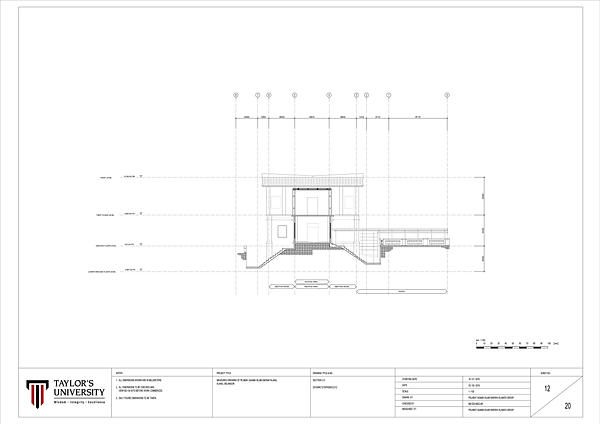

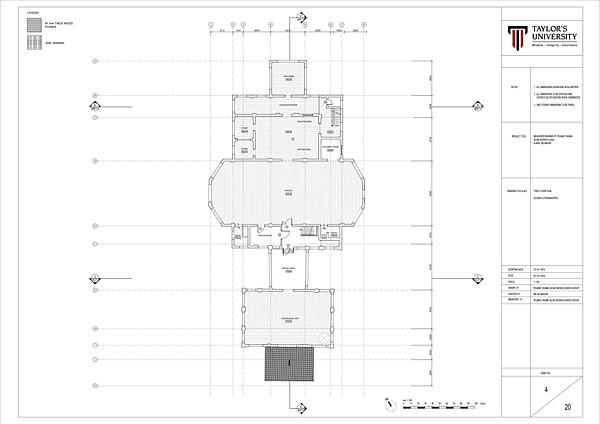

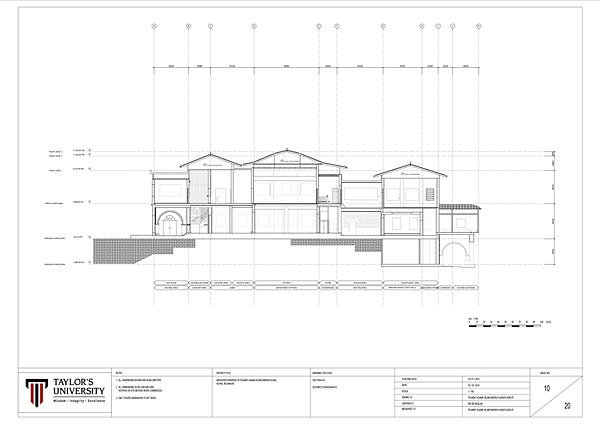

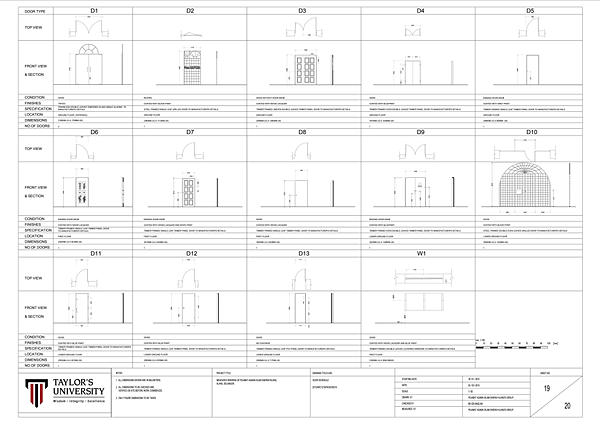

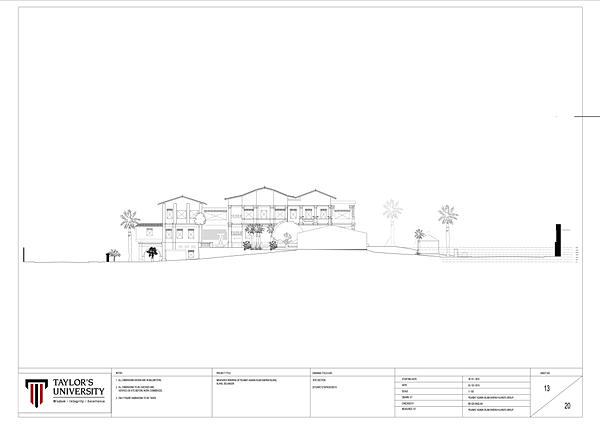

In this project, we need to produce a set of measured drawings and a model of out historical building. It is a on-site exercise where students are required to get the measurement of the building. We need to able to recommend the appropriate method of architectural historic documentation, recognize and recall techniques of measured drawing and documentation, explain the as-built building constructions, architectural detail and elements, interpret historical architecture element, structure and building, execute fieldwork and hands-on measurement exercise, and translate measured data into scaled drawing.
In this project we need to have a very good communication between team-mate, researching skill to get all the information, and good software skill to produce the measurement drawing.
